LCD Monitor Backlight Conversion

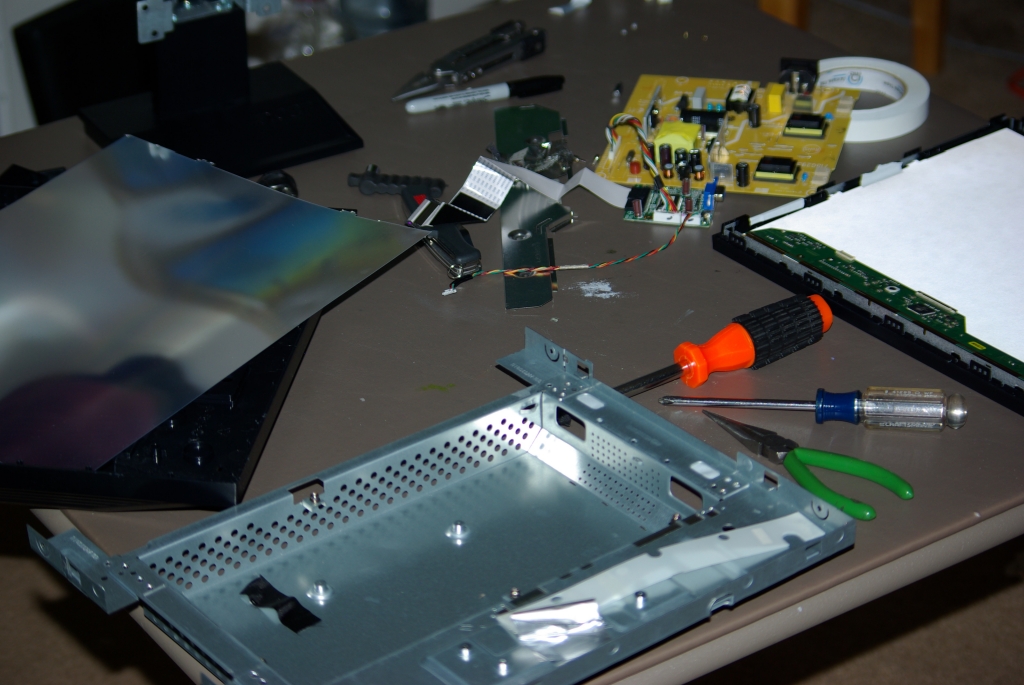

Disassembled screen

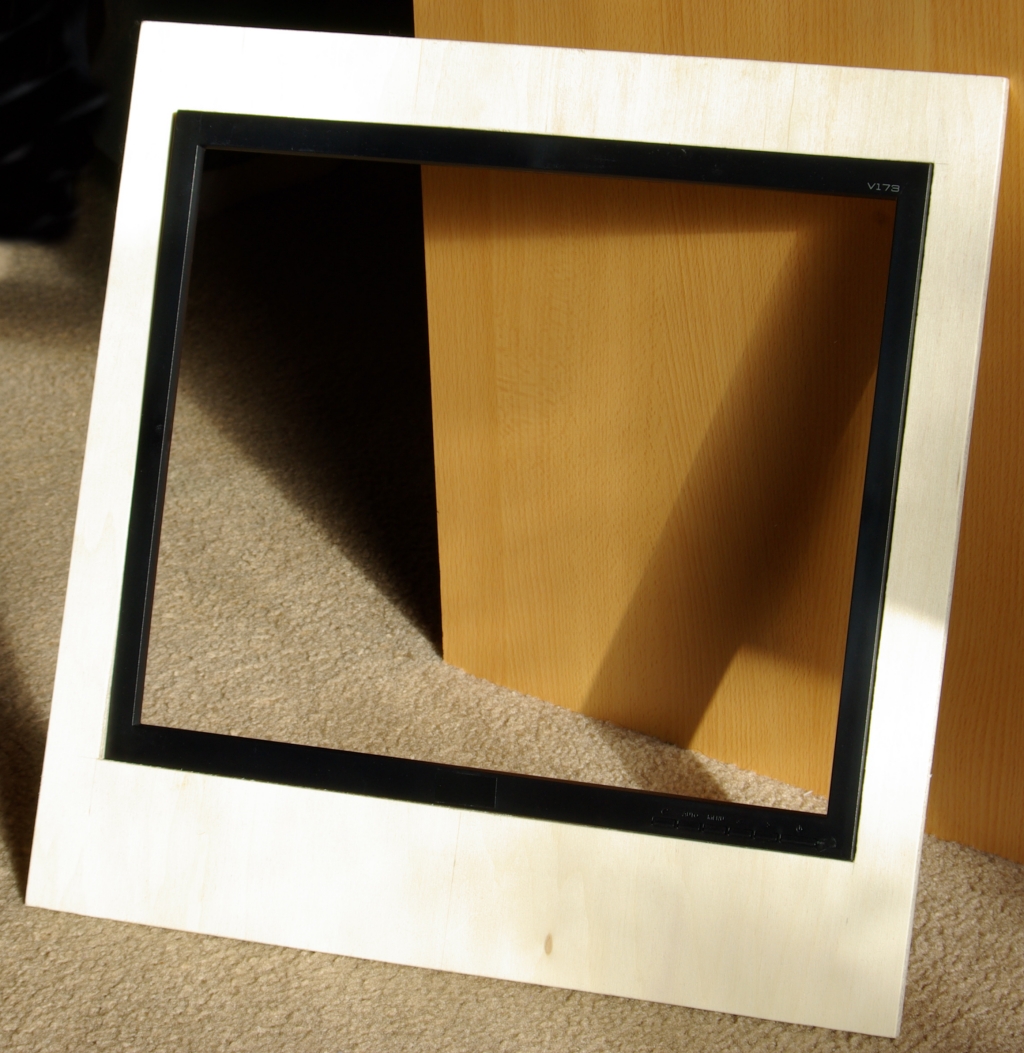

Front piece with

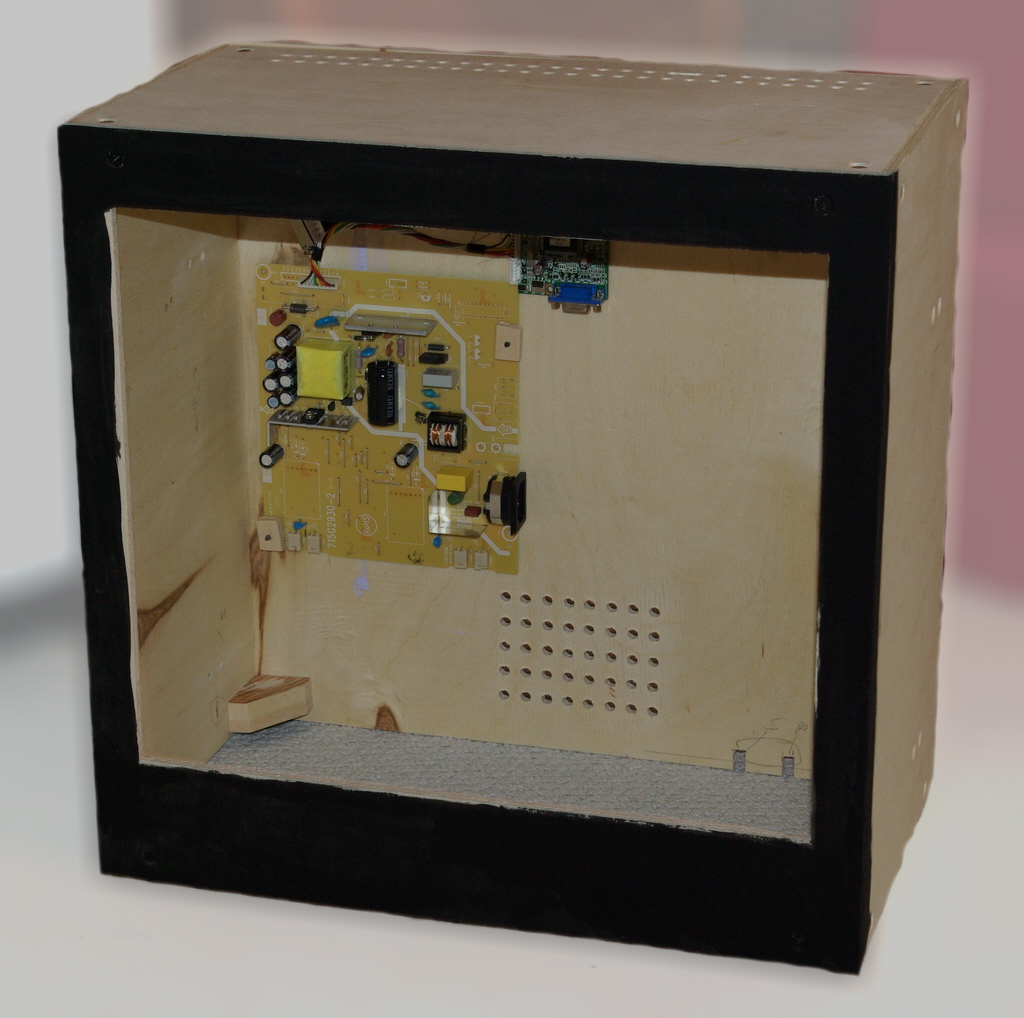

Monitor housing

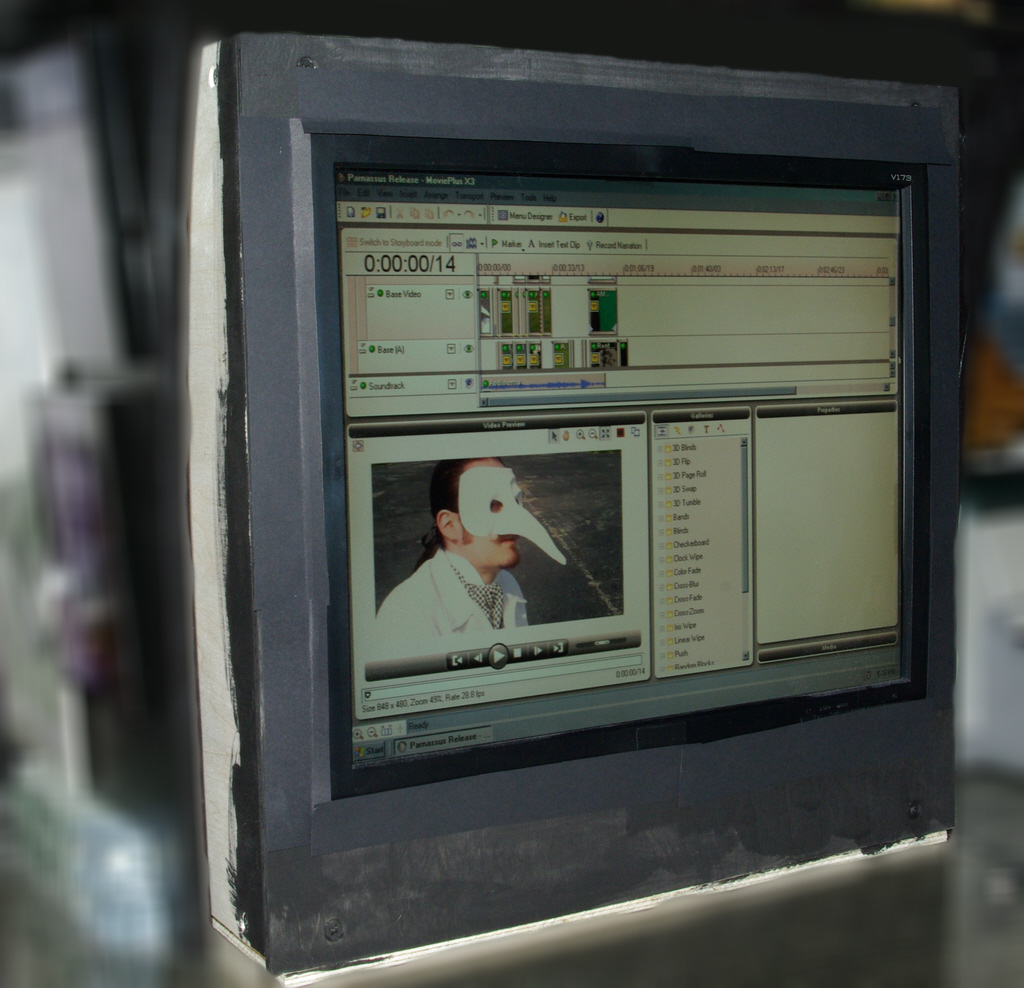

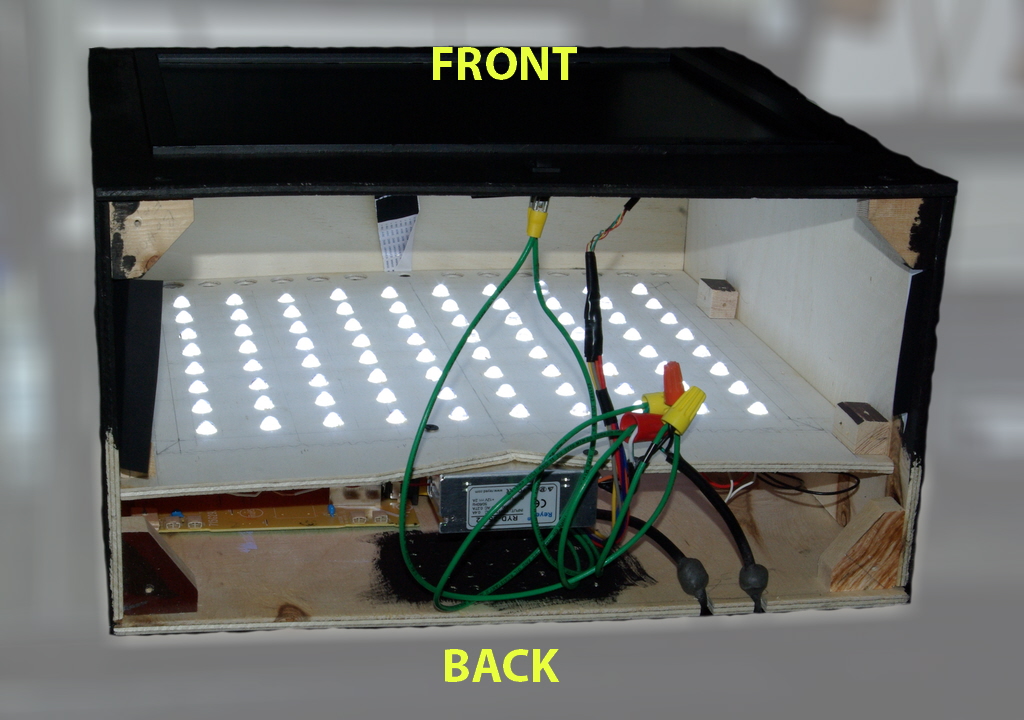

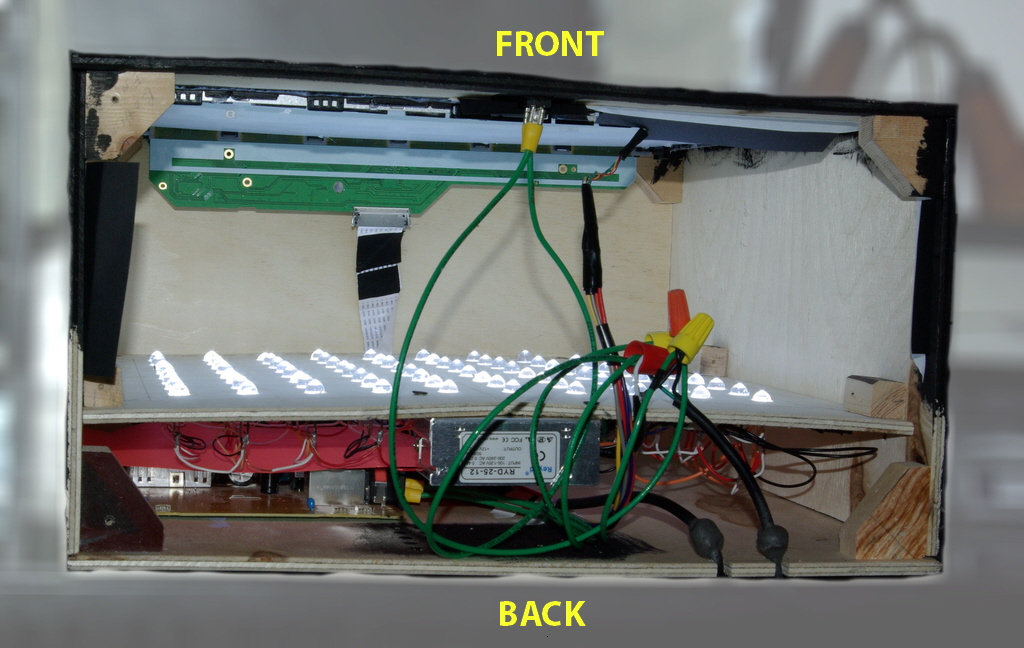

FINISHED:  June 24, 2010



- Monitor is now completed with excellent results!

- Brightness level is perfect for using the screen. It is the same as

     before the conversion.

- Using the converted monitor now seems to be free of the eyestrain

     and EMF problem. A very successful result!

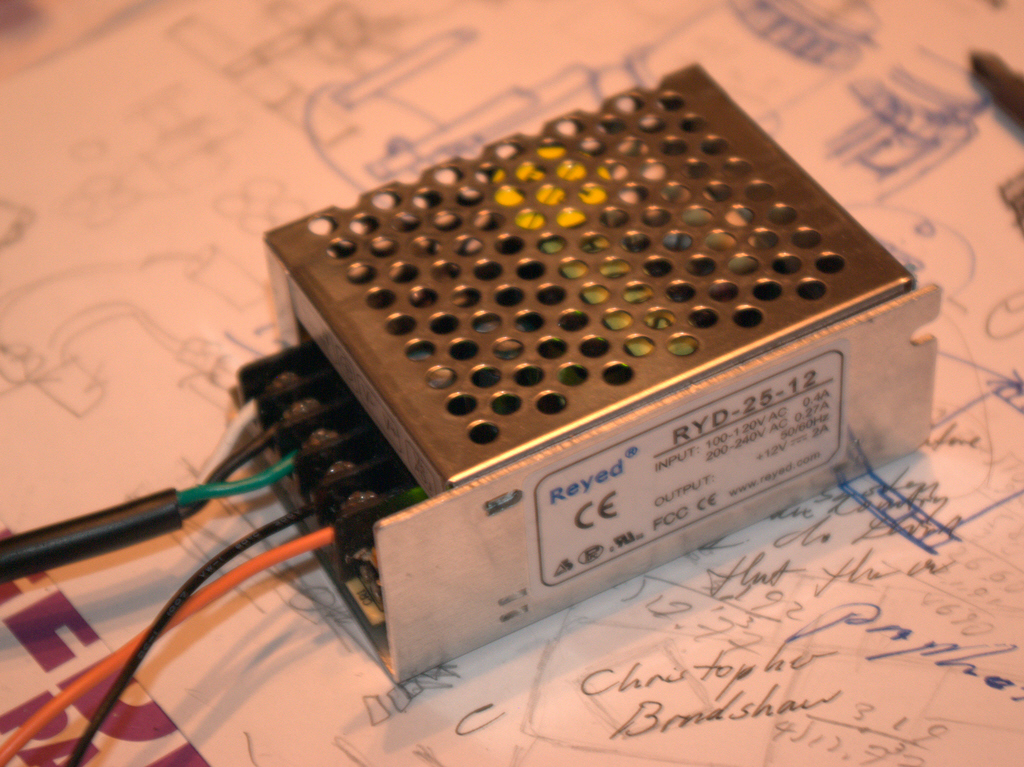

12 Volt, 2 Amp
power supply

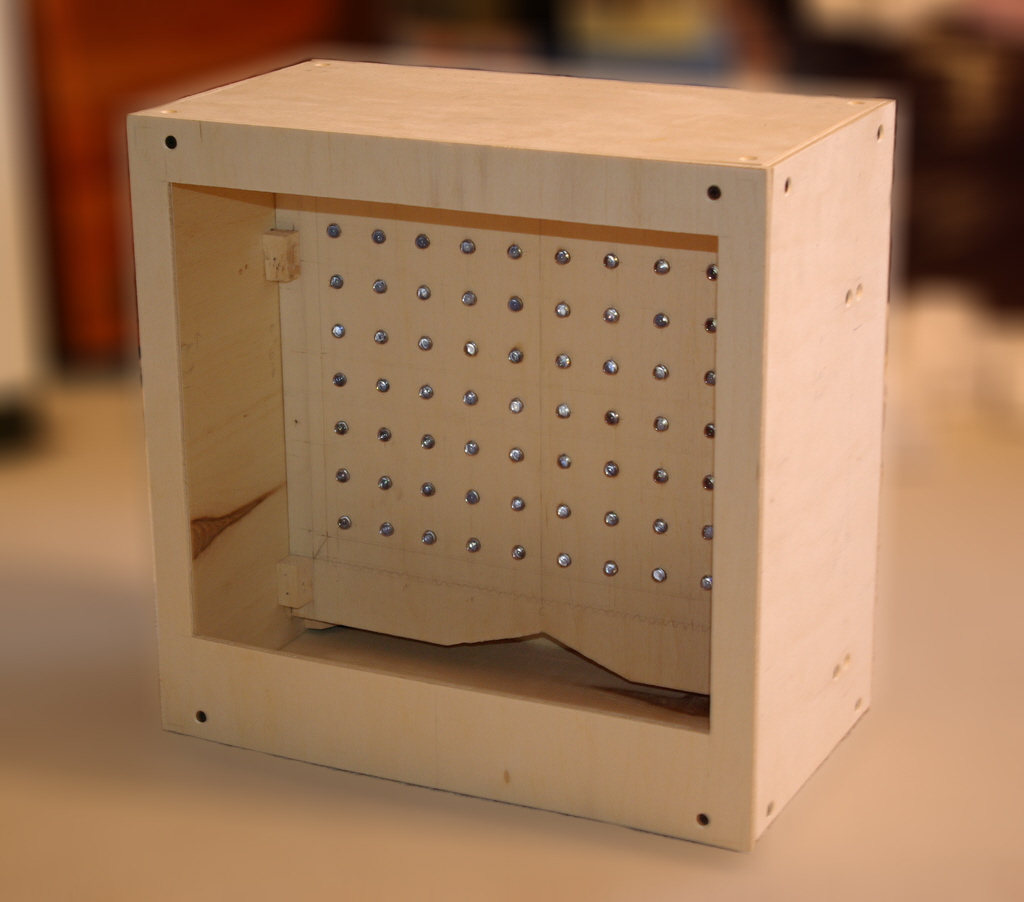

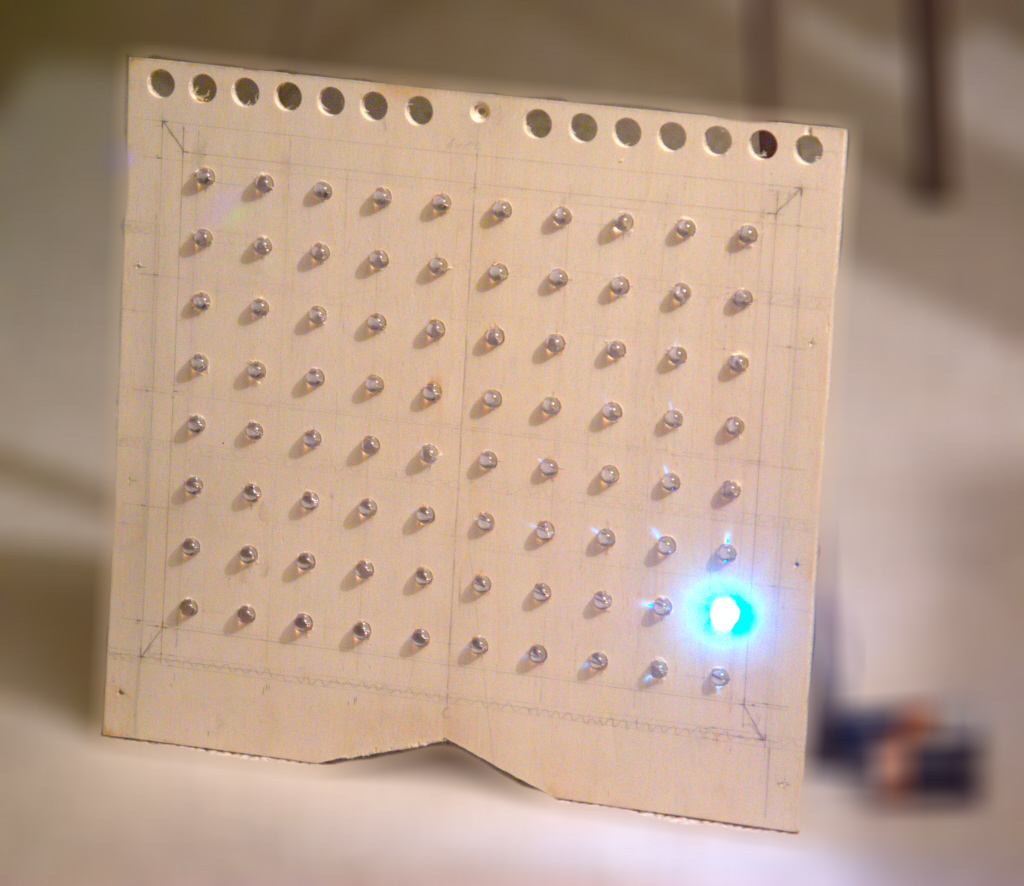

Eighty LED array

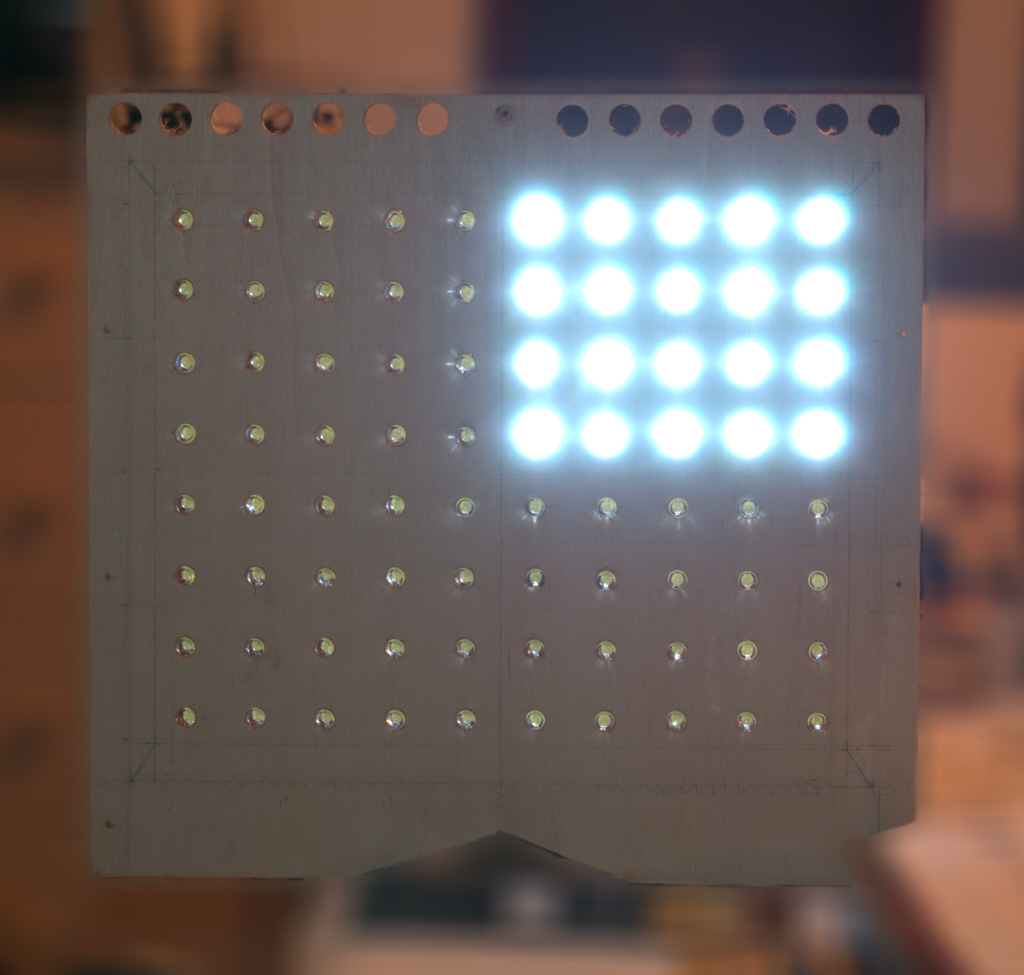

20 LED test

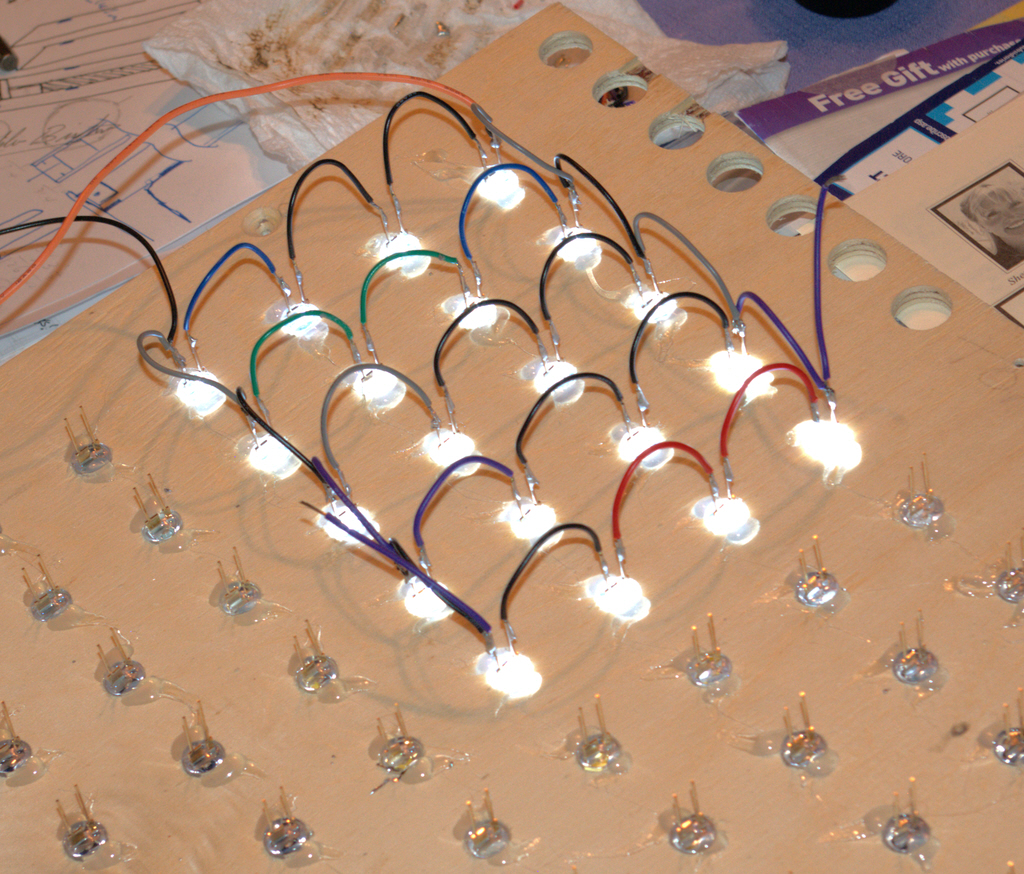

LED wiring progress

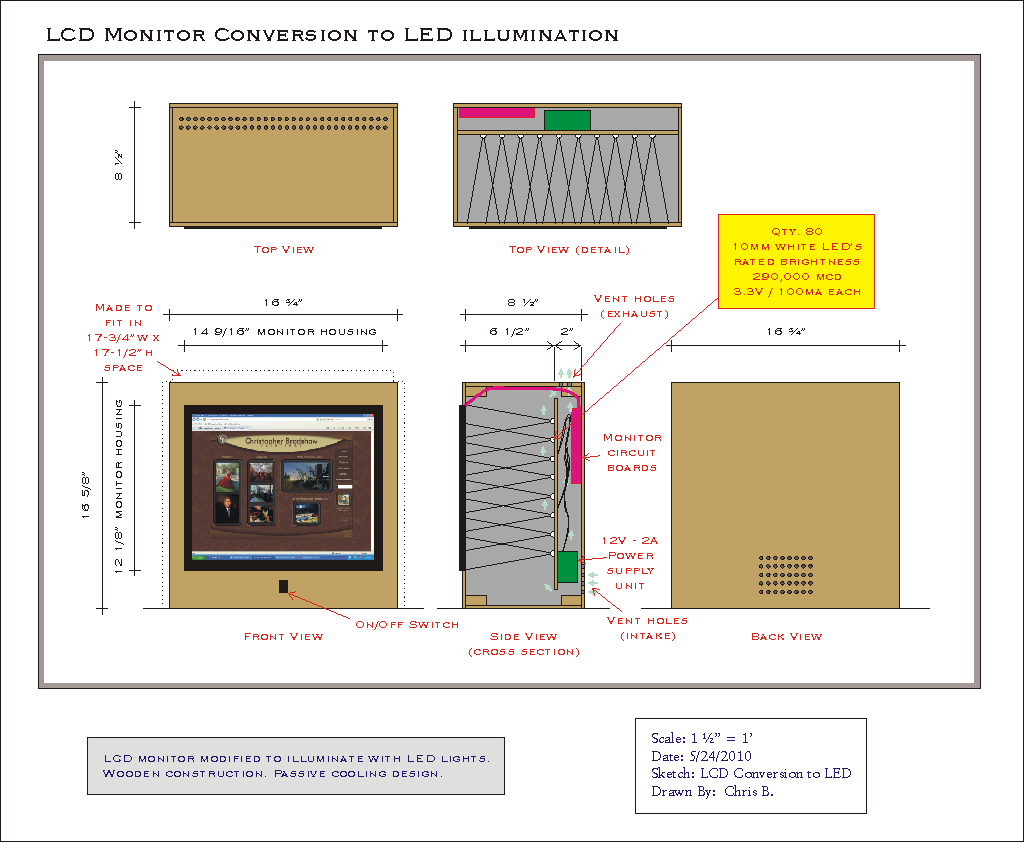

Plans

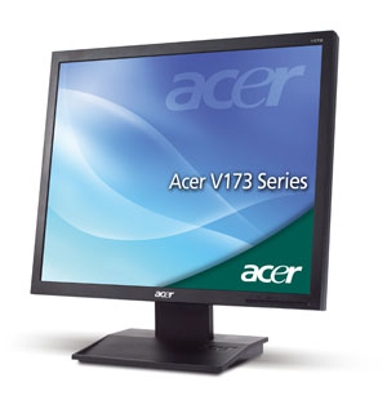

The Acer V173
17” screen

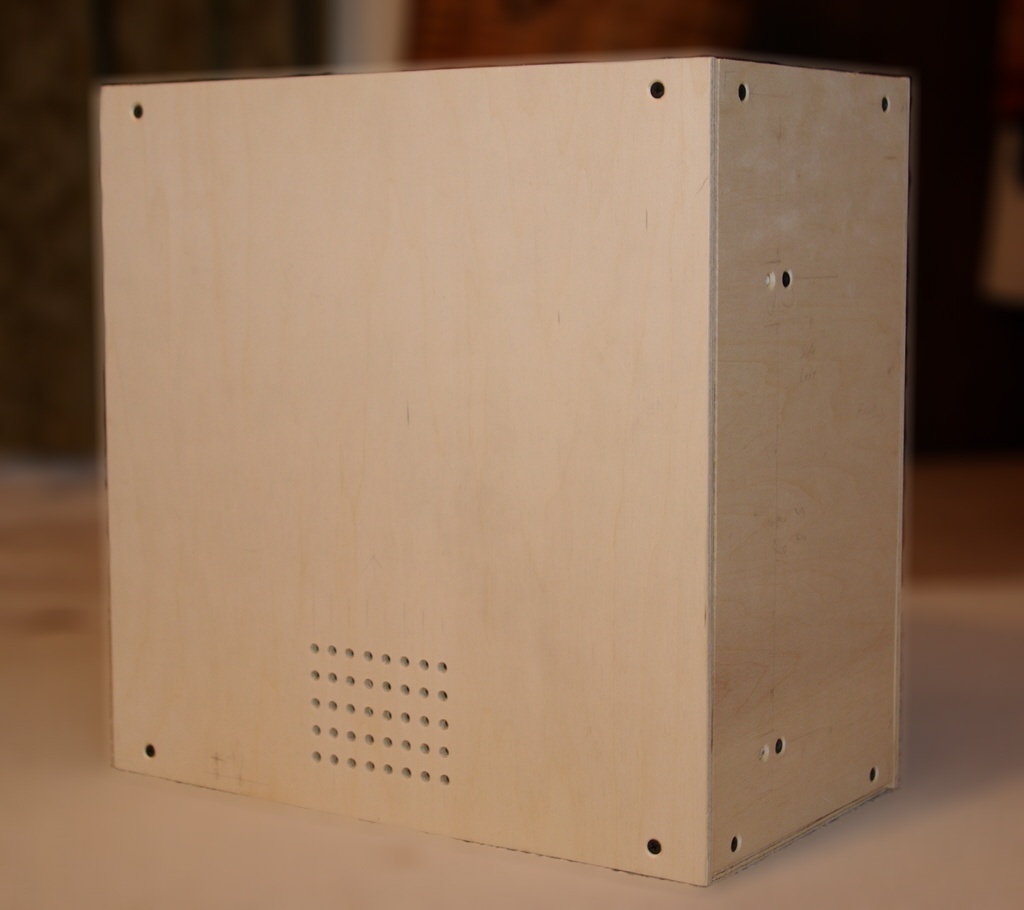

Box Construction
  After personally experiencing the problem of eyestrain with our new LCD monitor I did a little researching to find there are many effects fluorescent lighting (flickering) can have on an individual such as straining the eyes and inducing headaches. Include also the electrical ballasts used to operate fluorescent lights and the known
‘dirty electricity’ that they produce. What we found is that this health problem with flat screen monitors is becoming more common than people think.
   Because of this issue and to help reduce the eyestrain we have decided the to take apart our LCD computer monitor and fit it into a wooden box that allows the screen to be illuminated with LED’s that operate on direct current (DC).
   A quantity of eighty LED’s will be used. Each LED is 10mm and rated at 290,000 mcd brightness. Expected lifespan of these LED’s is 100,000 hours.
