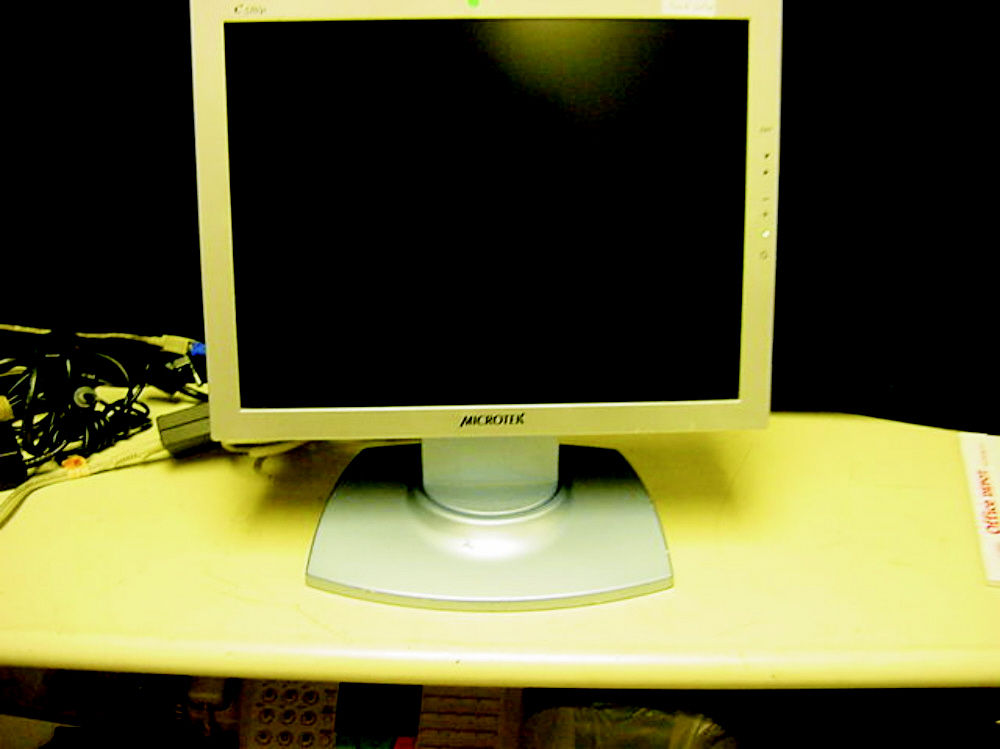

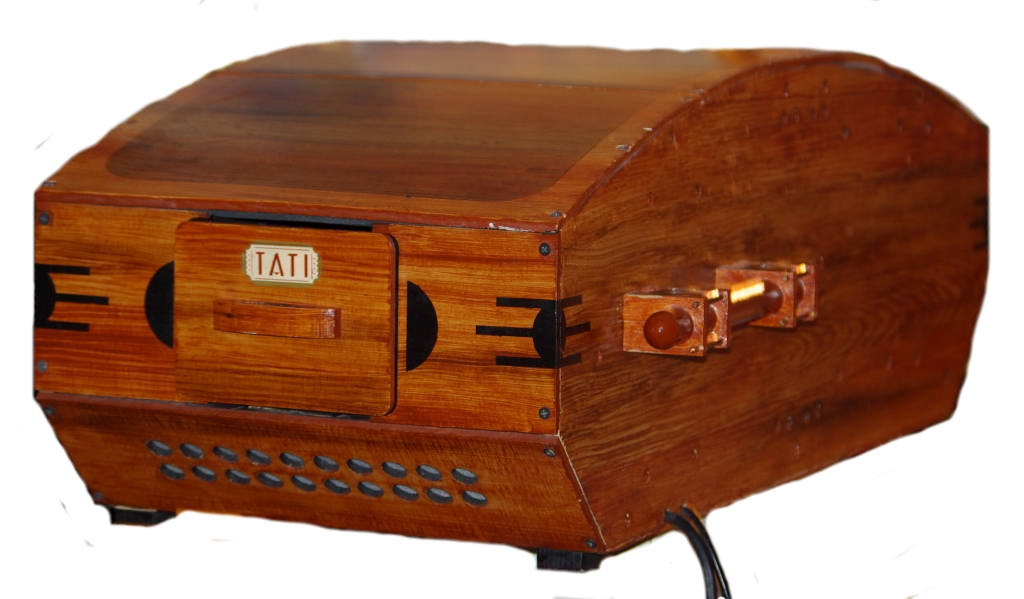

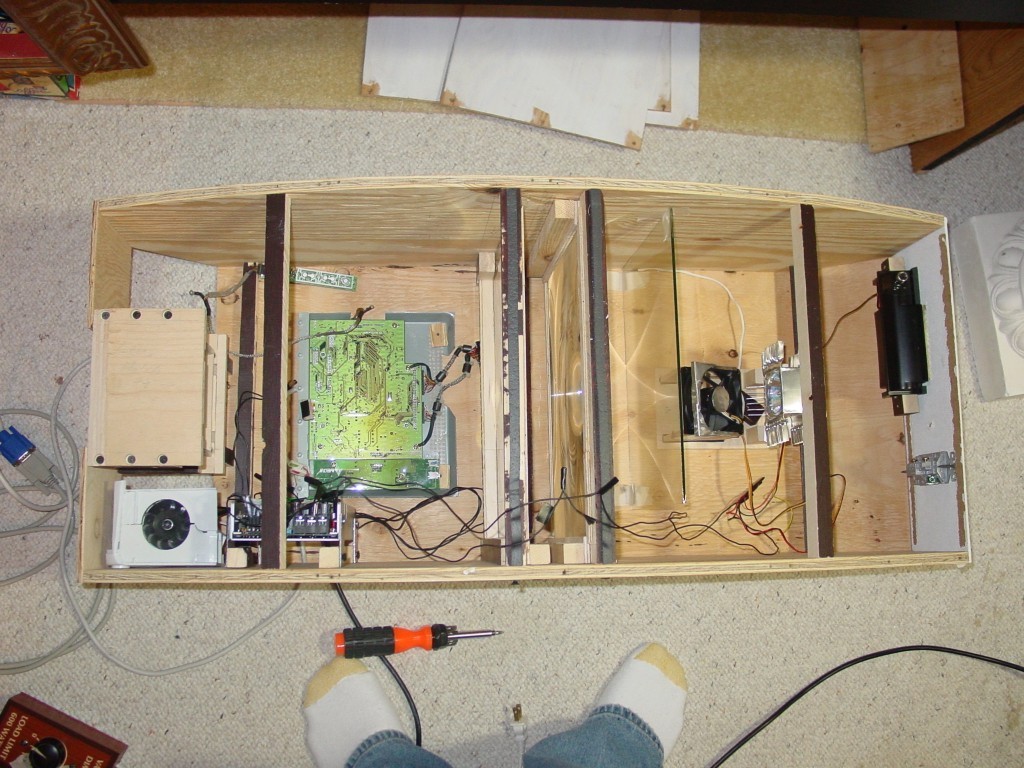

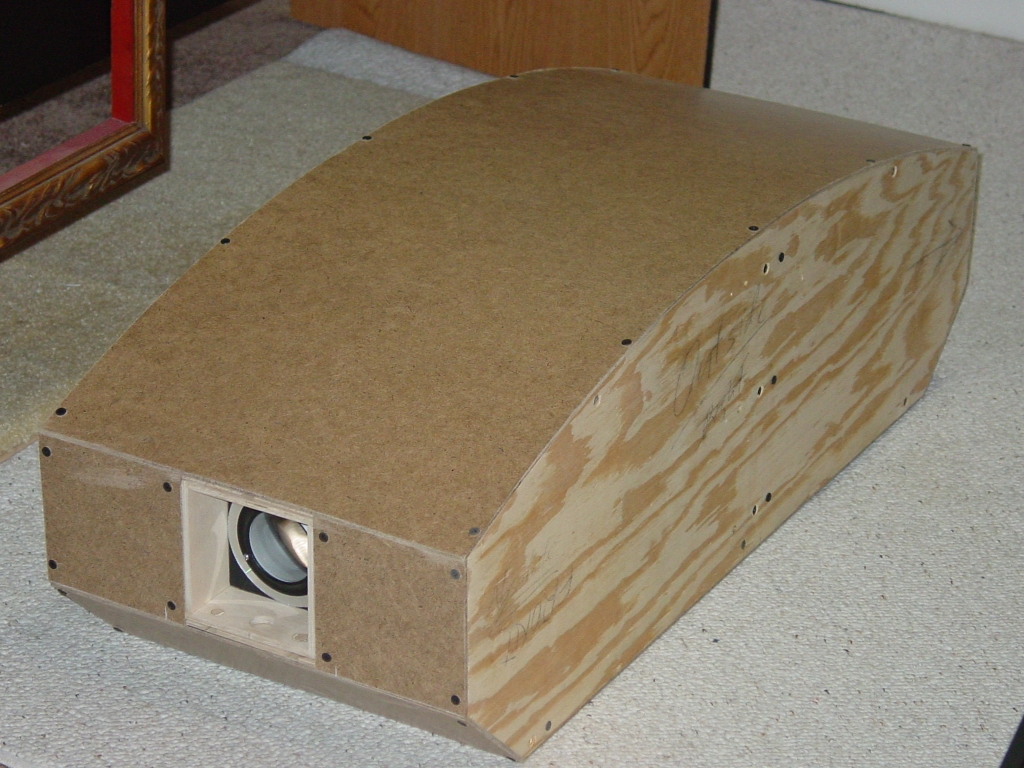

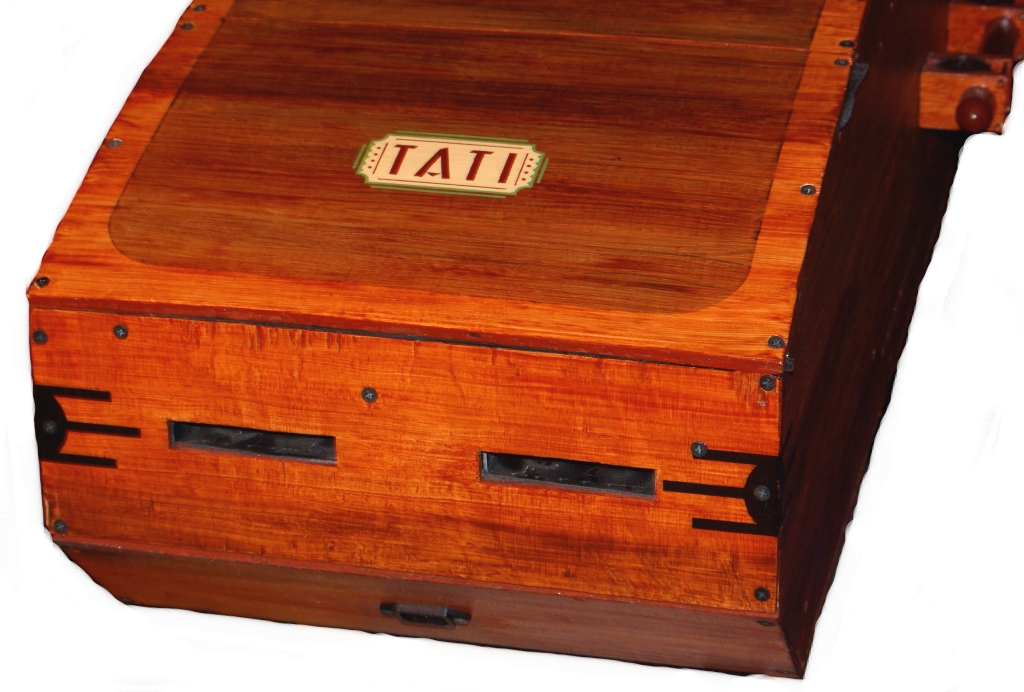

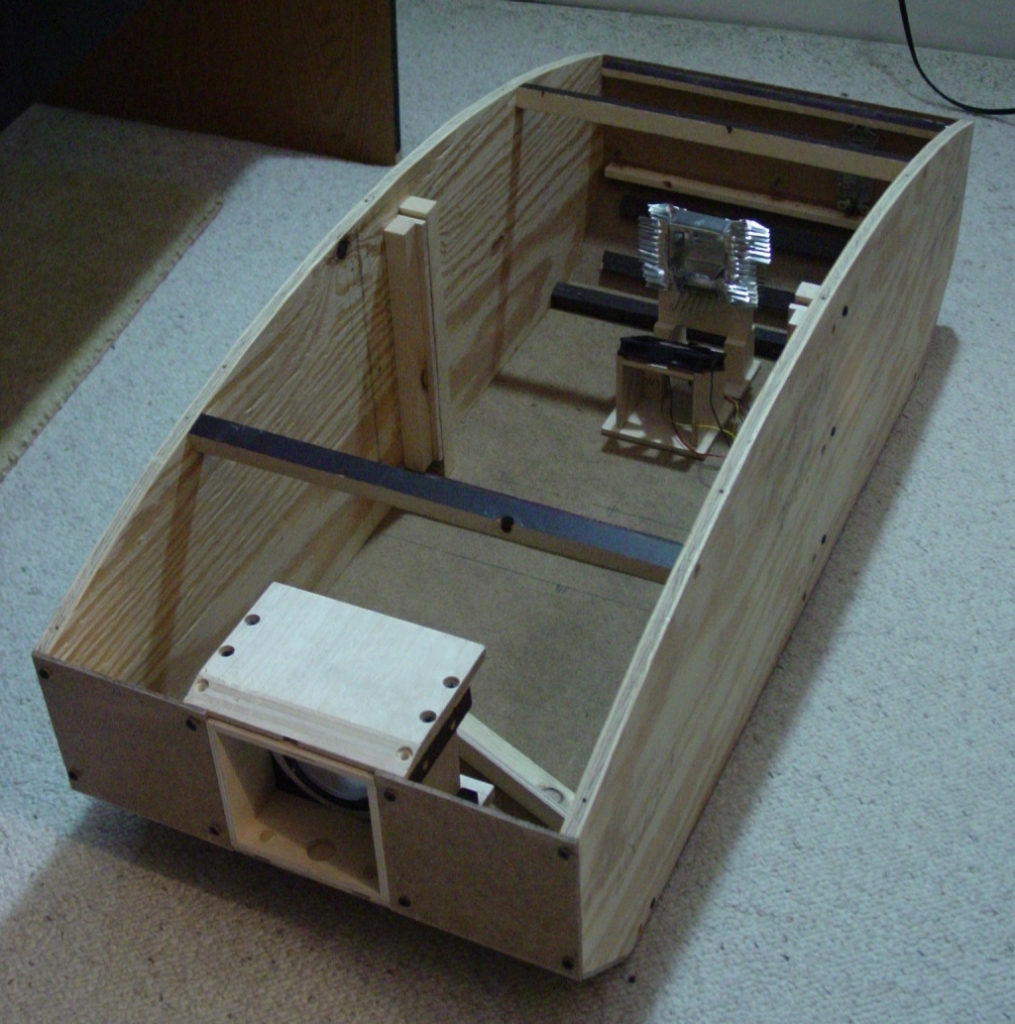

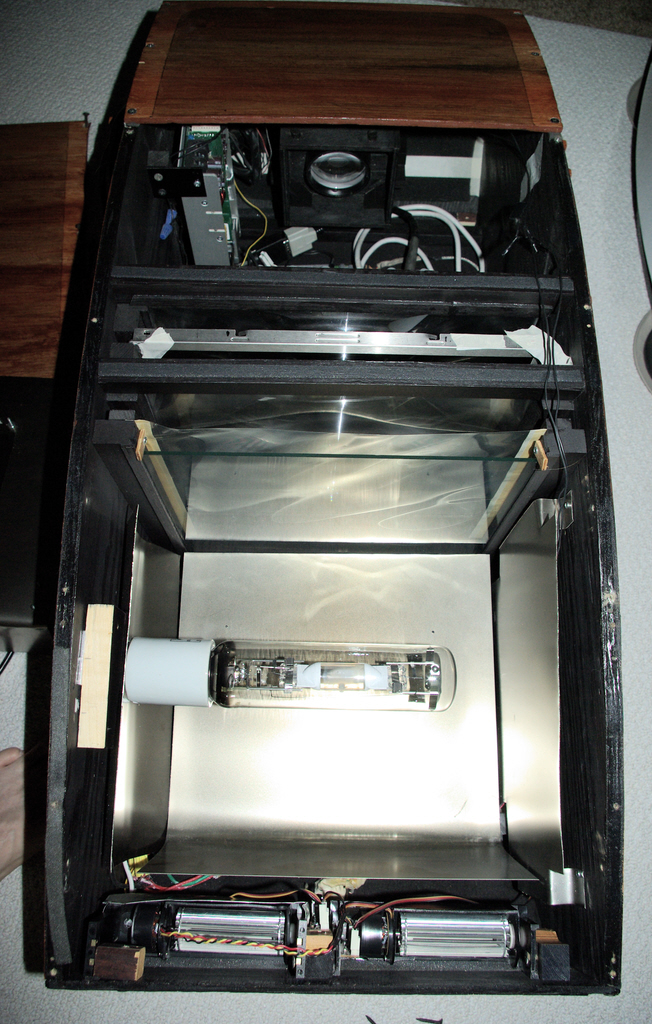

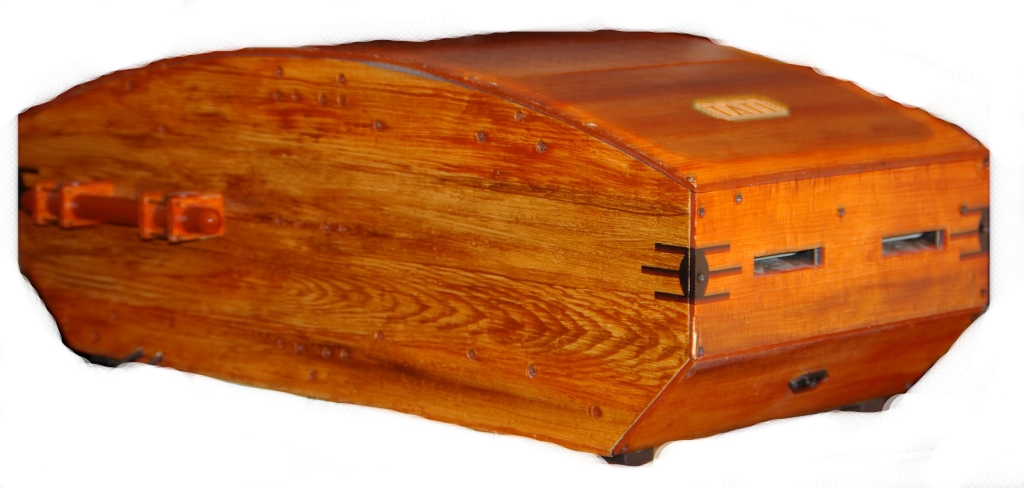

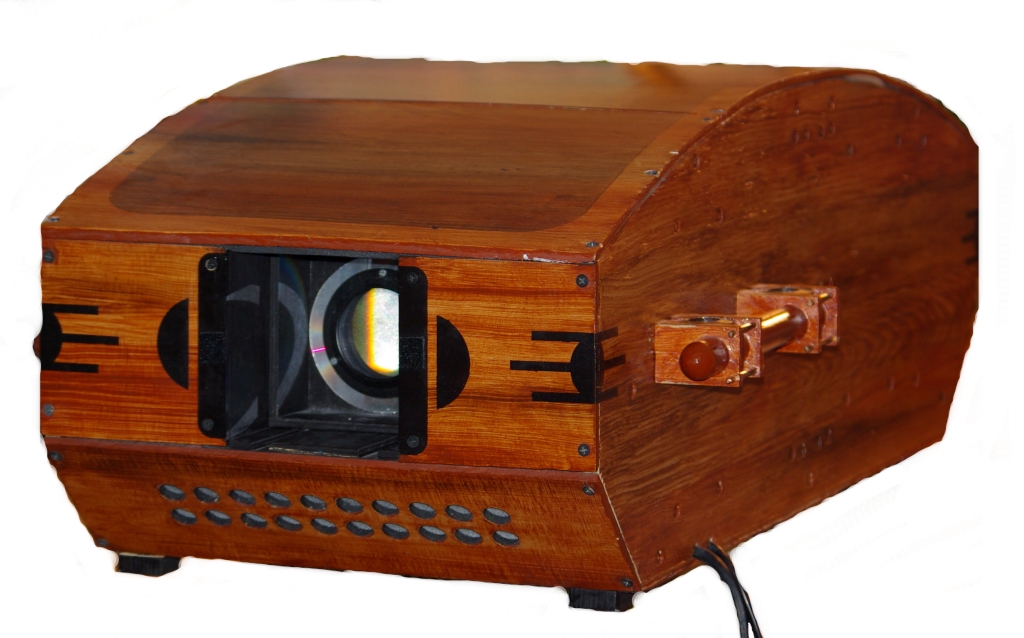

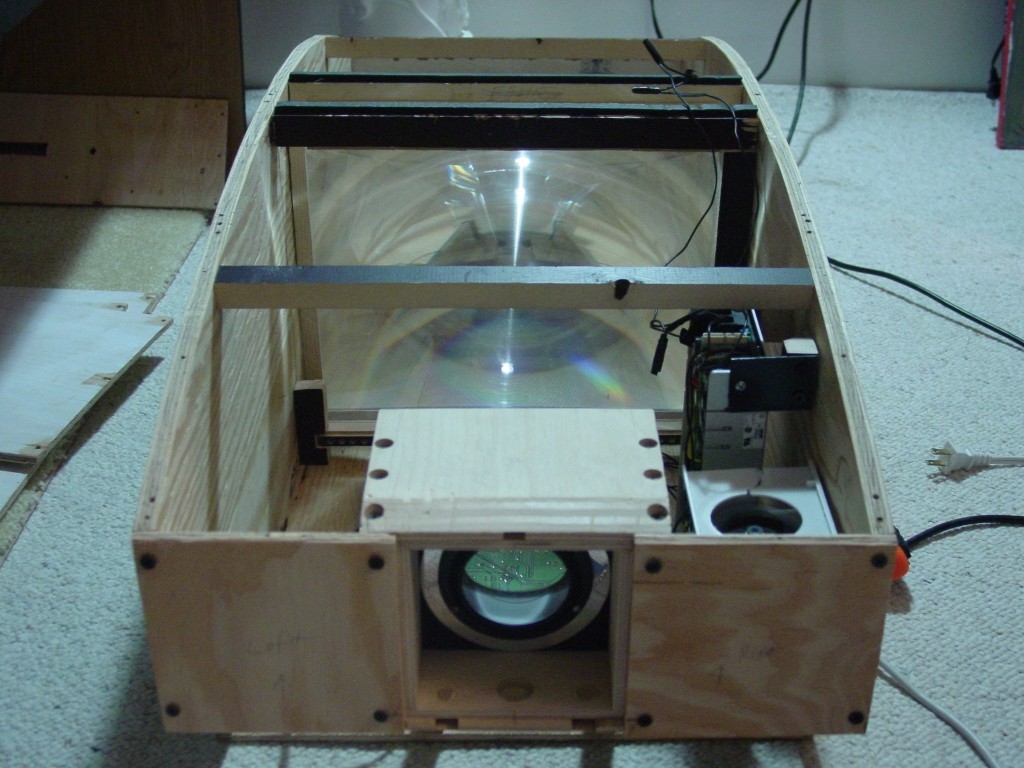

    Here I took an ordinary computer LCD monitor and carefully disassembled it to work as a video projector. We call it Tati, named after the mid 20th century French director. A high intensity light bulb is used to power the image onto the screen and a series of fresnel/triplet lenses are used to focus the image. The screen you see in the photos is also homemade although you can easily use a store bought one as well. The screen is 100” diagonal. If you should be interested in taking on a project like this yourself and need a little help, just write me an email and I will be happy to help.

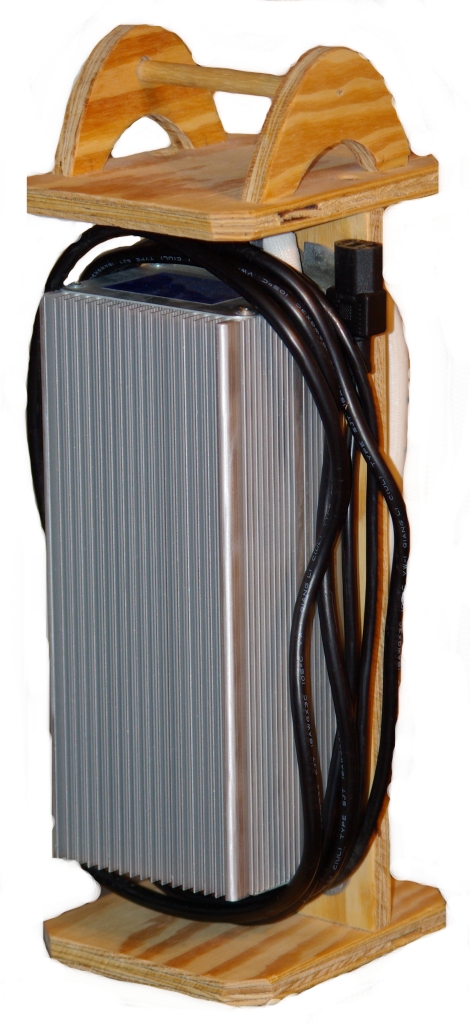

Wooden tote for the 400 watt ballast to run the metal halide bulb

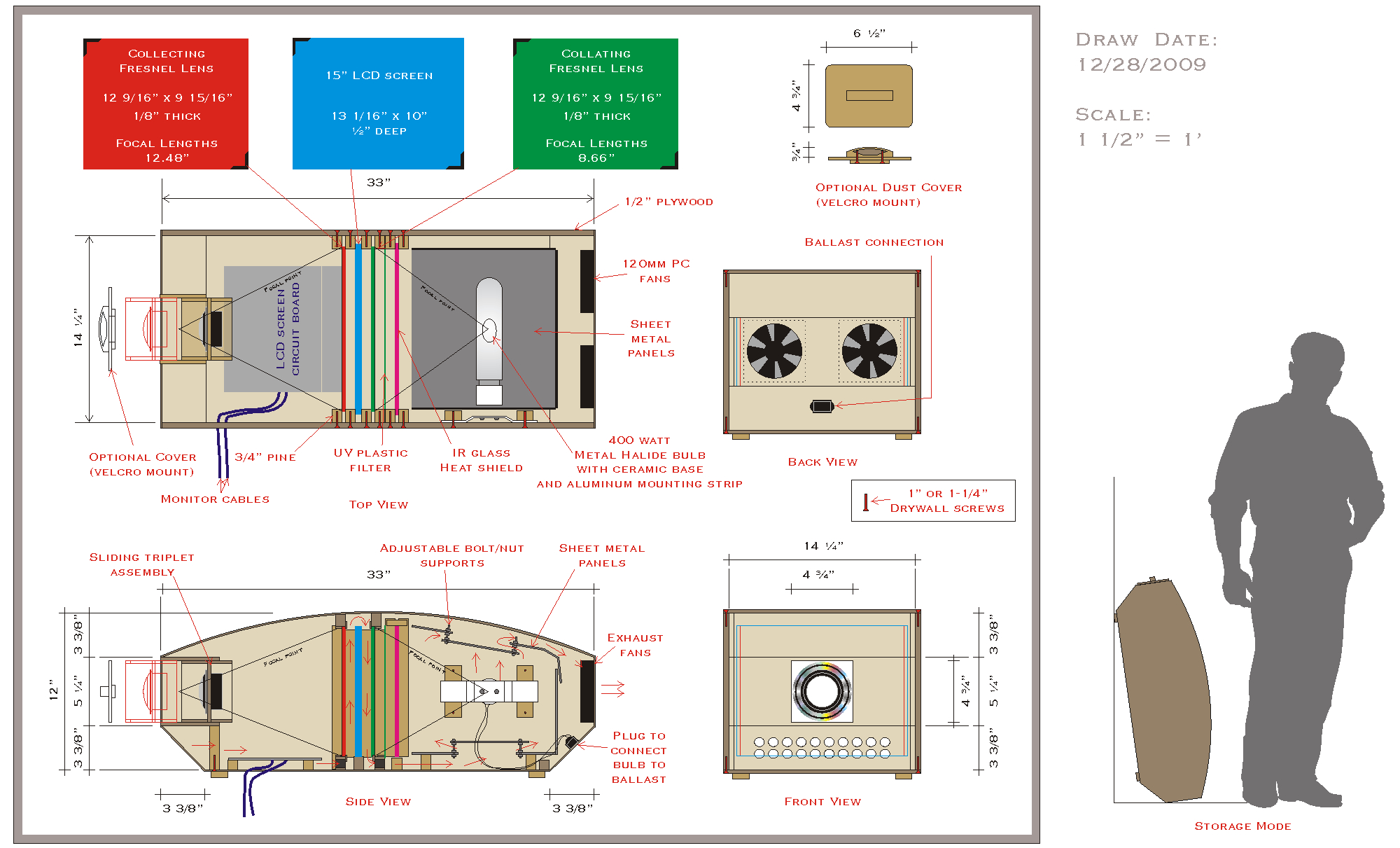

Construction Plans

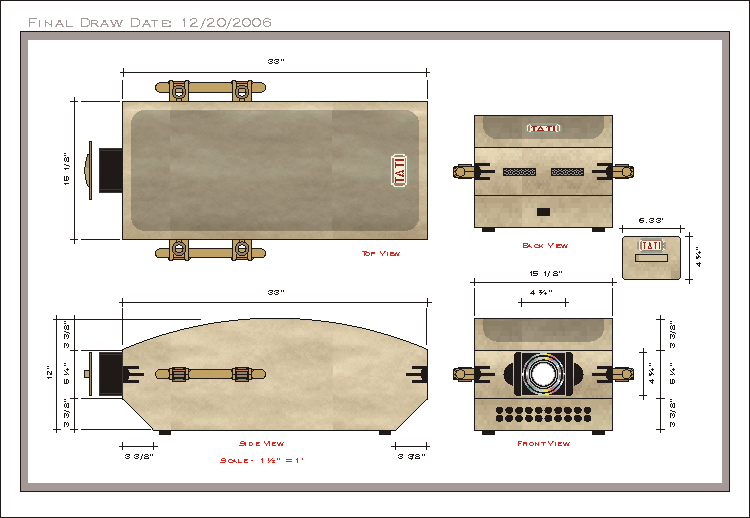

Outer Plans

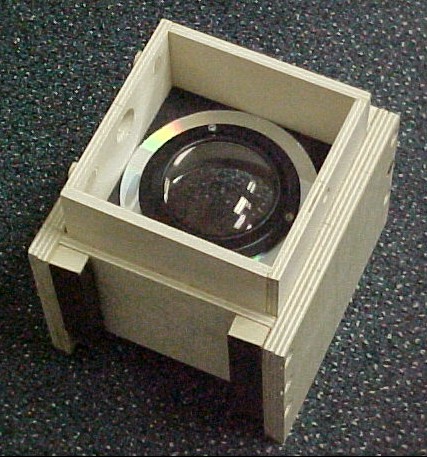

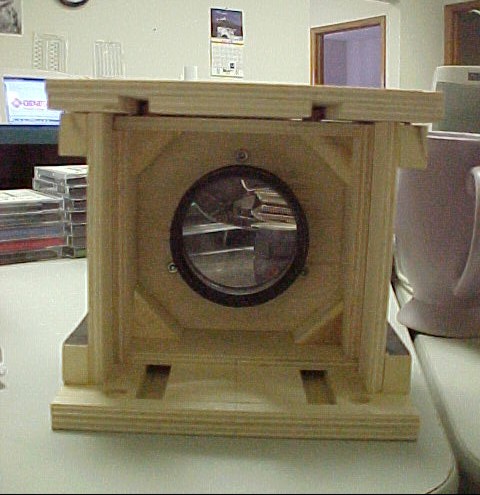

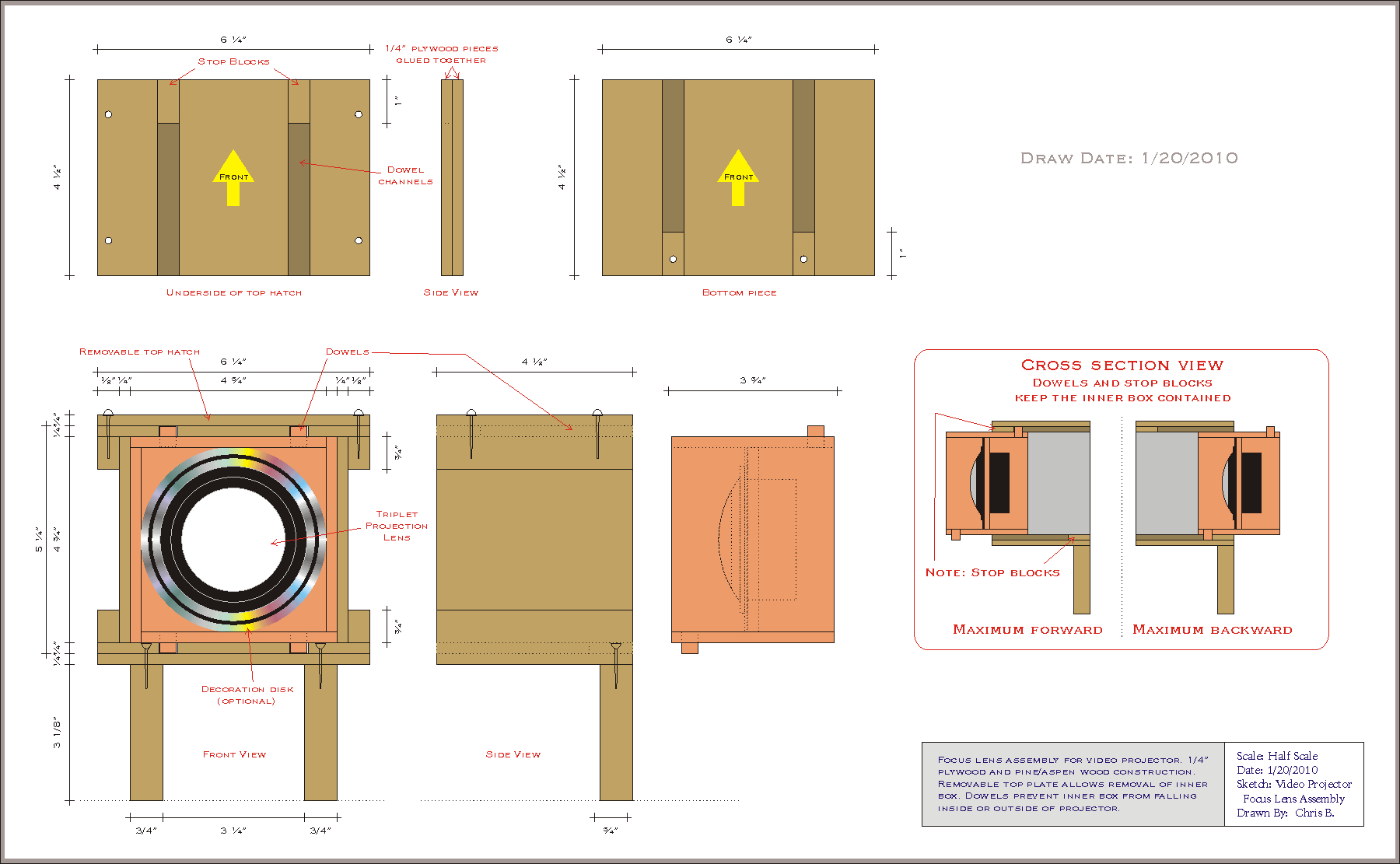

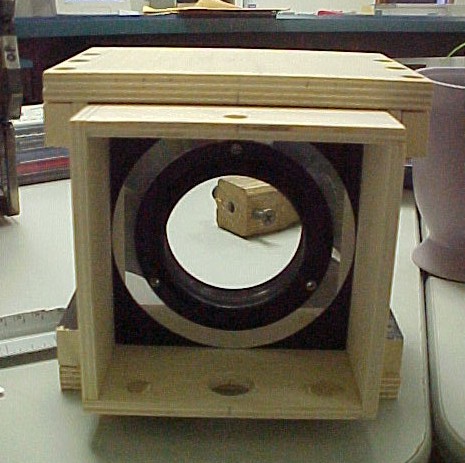

Triplet Focus Plans

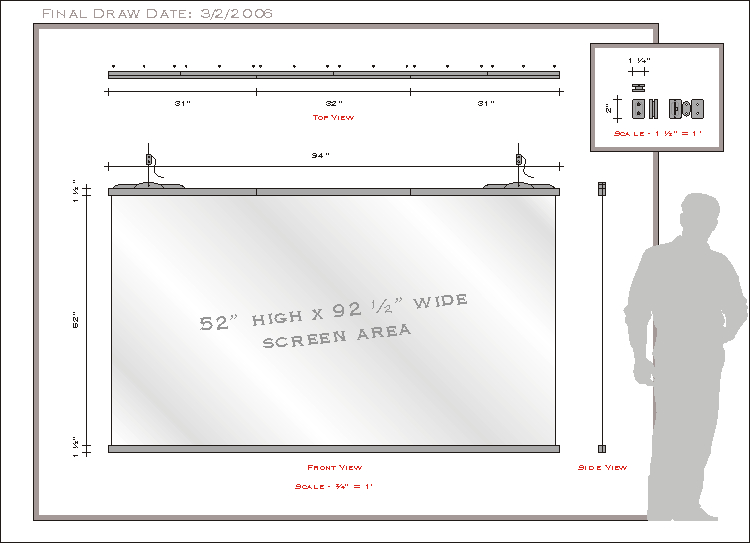

DIY Screen Plans

Check out the many designs

from around the world!

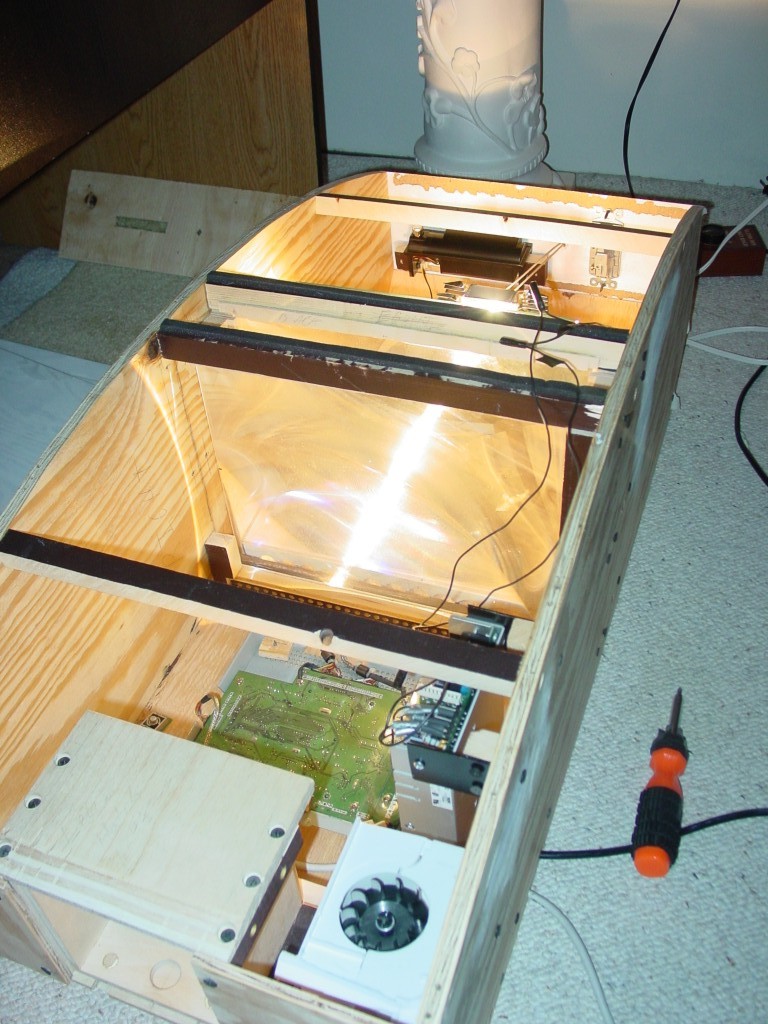

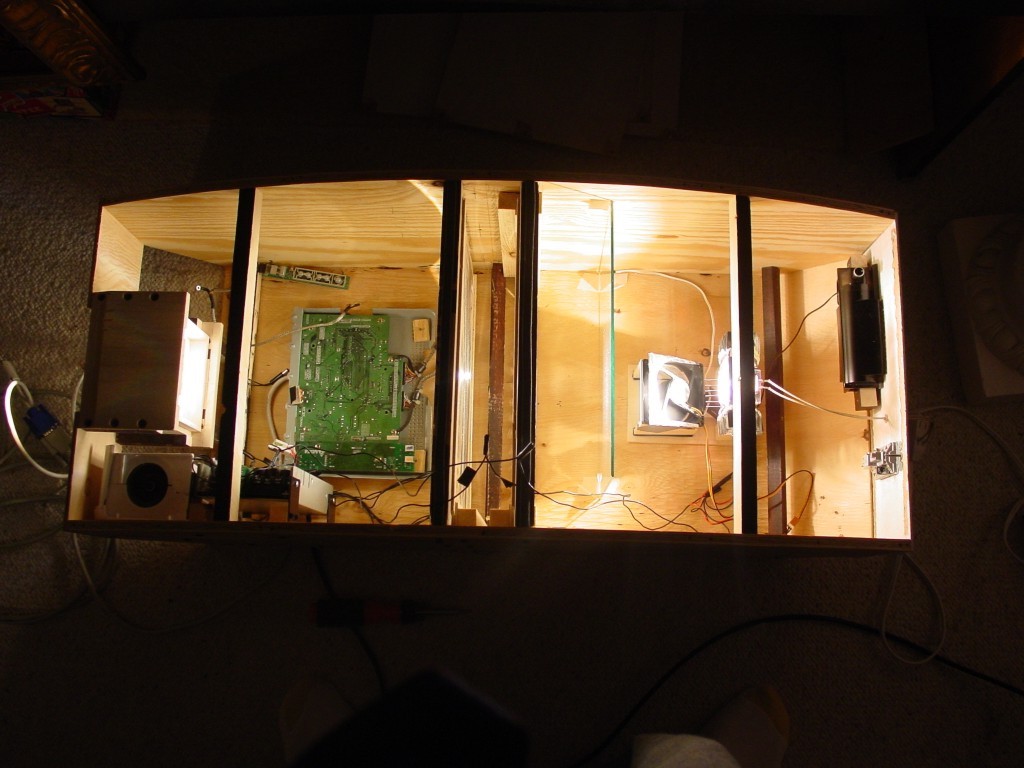

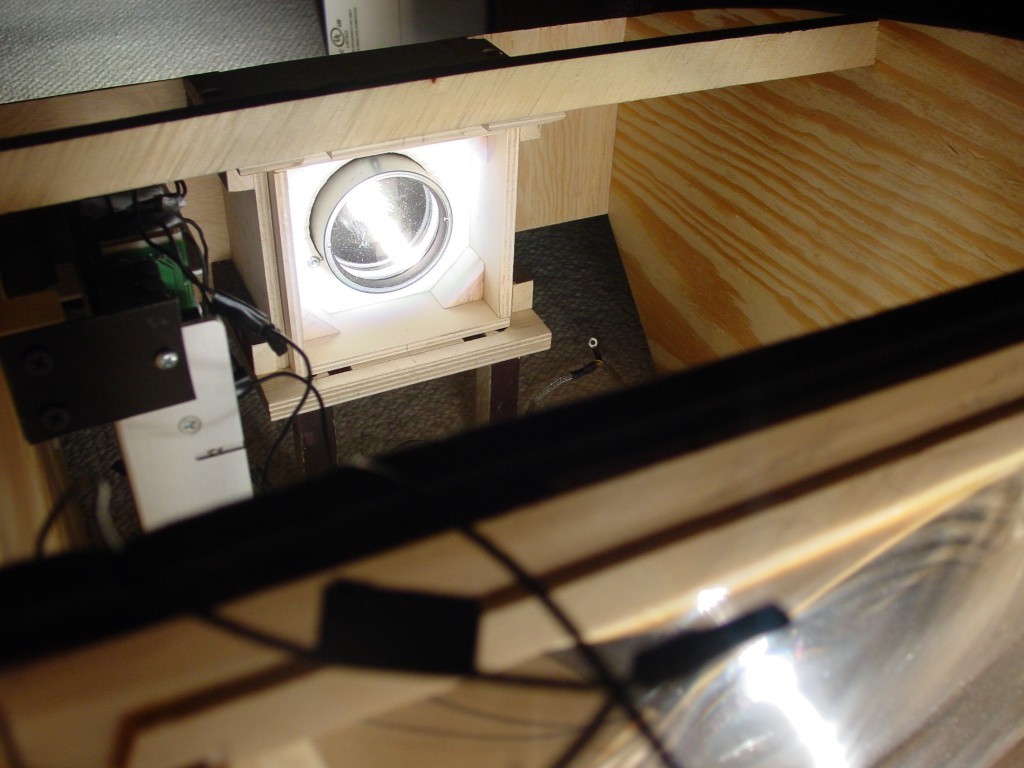

(Testing with Halogen light)

Click images to enlarge

An excellent book to learn

about electronics

“Teach Yourself Electricity and Electronics”

by Stan Gibilisco

Homemade Video Projector
